د.إ 33,900.00

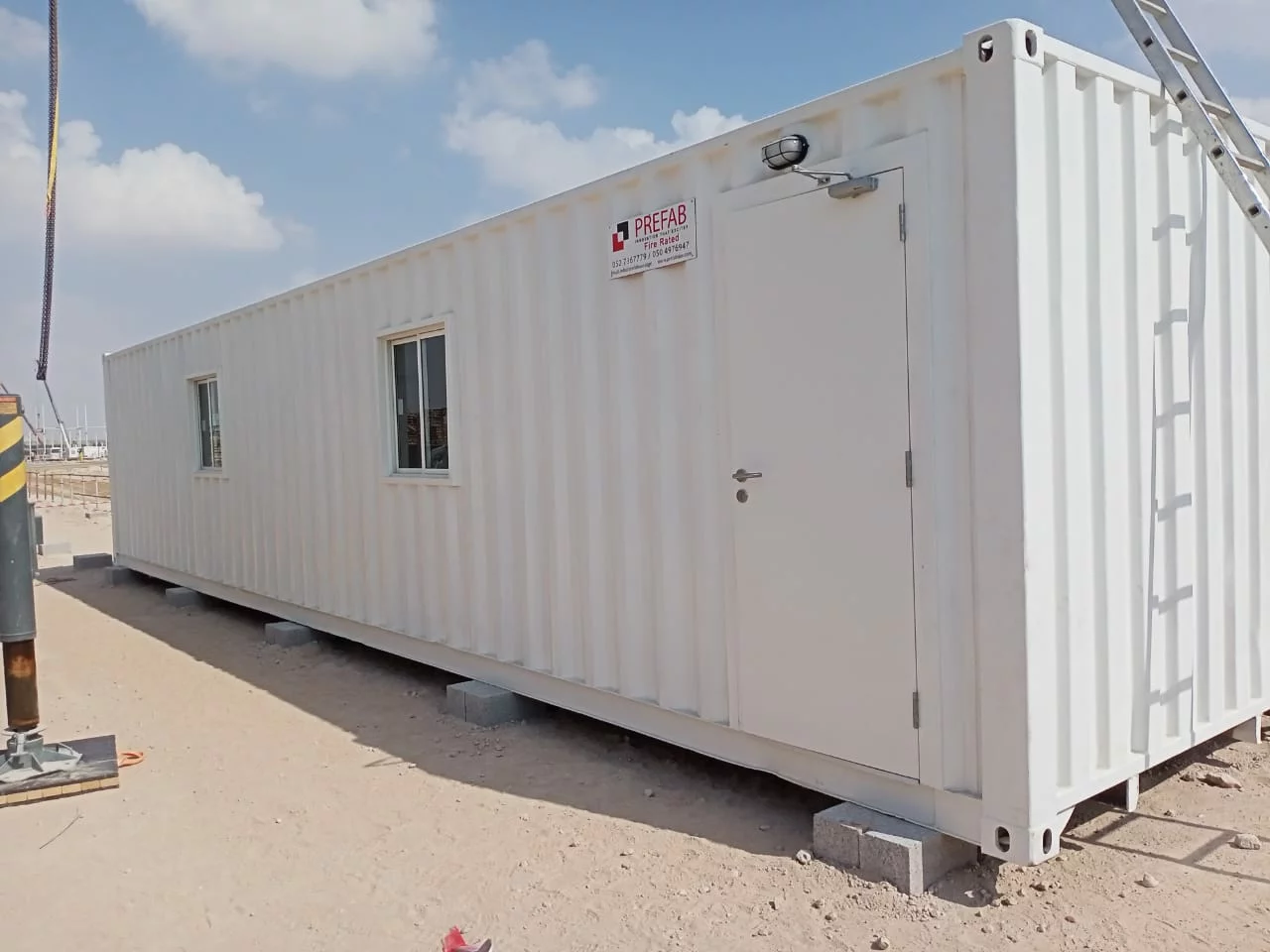

40ft Container
Room Type : 2 rooms & toilet
Size : 12.2*2.44*2.56 m
|
STRUCTURAL FRAME |
As per standard 40’ shipping container floor. Spacing of transverse members=1200 mm c/c Spacing of longitudinal members=2400 mm c/c
|
| Top corner posts are die casted MS 178 X 157 X 12MM cubes placed on top & bottom corner giving the steel structure durability and means of lifting.
Vertical corner posts are manufactured with MS Angle 175 x 157 x 5mm with 70mm flange as per picture attached. Upper Roof frame is manufactured with MS 120 X 60 X 5.3MM rectangle hollow section welded into corner Top & vertical posts. All welded joints are wire brushed cleaned and painted with 02 coat epoxy paint system over red oxide primer coating. |
|
| The Base frame shall painted with 02 coat paint, one with red oxide, one with rust free enamel paint.
————————————————————————- |
|
|
FLOOR |
Floor Frame: The Floor frame shall be constructed from MS Tube 80x40x5mm making the floor assembly one integral frame.(600mm joists spacing). The floor frame shall be grit blasted to SA2.5 and painted with 02 coat system of epoxy paint. |
| Floor decking: One layer of 18 mm thick cement board, fixed to the base frame and floor frame.
Bottom of the cement board is painted with bitumen paint.
|
|
| Floor finish in Dry area : High quality 2.0mm thick PVC vinyl sheet with skirting laminated Pvc size 75 x 12cm.
Wet area in Toilet : Excluded. ————————————————————————- |
|
|
WALLS |
External Finish As per container walls finished with high gloss / Matt epoxy paint colour approved by client.
Wall Framing: Fire retardant steel sandwich low ribbed panel 50mm thick 1200 x2400mm/ .5mm thick steel sheet front & back, 50mm thick polyurethane insulation color as per approved by the client. Flat sandwich panels to be fixed with the riveting of aluminium angles 40 x 40 x 2mm at vertical and horizontal forms for firm support.
|
| Wall Insulation: 50mm thick polyurethane insulation density 30kg/m3 density.
————————————————————————- |
|
| ROOF | Rooftop: As per standard container roof. |
|
CEILING |
False ceiling is Fire retardant steel sandwich low ribbed panel 40mm thick 1200 x2400mm/ .4mm thick steel sheet front & back, 50mm thick polyurethane insulation colour as approved by the client. Flat sandwich panels are to be fixed with the riveting of aluminum angles 40 x 40 x 2mm at vertical and horizontal forms for firm support.
————————————————————————- |
|
DOORS |
External doors are 60 minutes fire rated powder coated steel sandwich type full frame doors/ with complete ironmongery and accessories size 900x 2100mm.
MS SHS columns are placed as doors and window framing. Internal toilet doors are Excluded. |
| Door closer is to be provided only with the external main entrance doors.
————————————————————————- |
|
|
WINDOWS
|
Powder coated Aluminium frame white color double glazed, tempered one is sliding, one is fixed size 900x900mm or 1200x1200mm as per client’s approval. |
| Windows for exhaust fan will be aluminum frame with 6 mm obscure glass and opening for Ø6” Exhaust fan, overall size 40x40cm. Exhaust fans will be KDK Brand.
————————————————————————- |
|
|
ELECTRICAL |
Electrical supply: 110-120V – 50/60Hz as per requirement with fire proof D/B Panel. Make – MEM / Hager/ ABB or equivalent. ELCB incomer with MCB outcomer having 32A isolator.
110 volts as per US standards with fire proof D/B Panel. Make – MEM / Hager/ ABB or equivalent. ELCB incomer with MCB outcomer. 63A industrial socket for main line connection. 13 Amp & 15Amp sockets, switches as per plan, All sockets and switches are of 110 volts as per Us standards. Water proof ip65 sockets & switches in laundry container. All wires are through pvc conduits 25mm concealed in walls. |
| 2×36 watt LED batten type light fittings IP65, 2×36 watt water proof IP65 lights make by American brand.
13 amps and 15 amps switch socket outlets are – American brand. Wires origin is – National / MESC or equivalent. ————————————————————————- |
|
|
PLUMBING |
Excluded |
| Excluded | |
| Excluded
————————————————————————- |
|

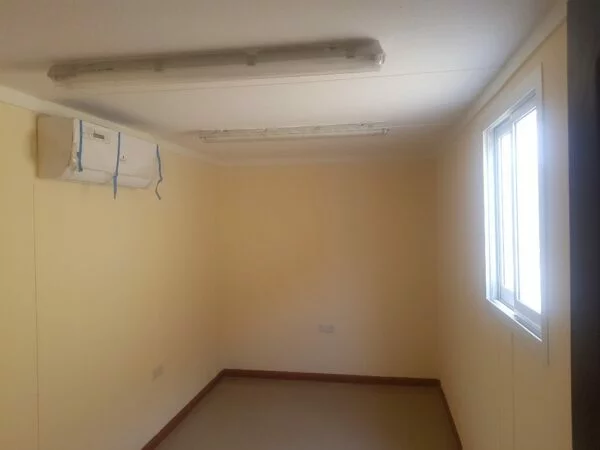

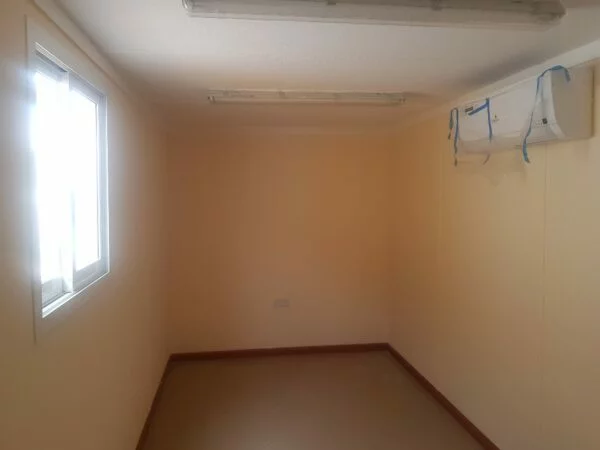

| HVAC | Supply & installation of 18000BTU split type Ac unit with ip65 isolator.
————————————————————————- |
| FURNITURE | Excluded
————————————————————————- |
