Standarad Office Cabin PB11

Original price was: د.إ 24,999.00.Current price is: د.إ 23,900.00. inc. Vat

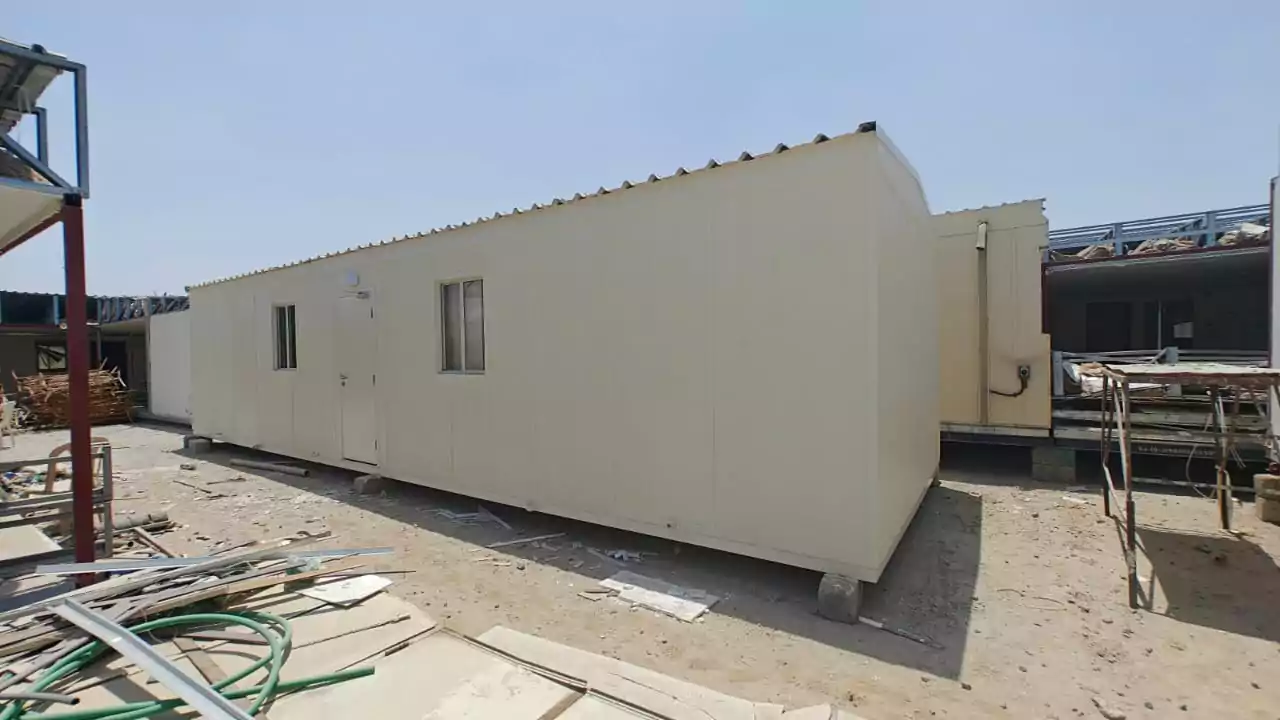

Prefab Standard Office Cabin

Room Type : 2 Rooms,Toilet & Pantry

Size : 12*3.6*2.47 m

Description

BASE FRAME

The steel base frame shall be constructed from IPE 120 AA MS I Beam,
full perimeter beams with central runner and cross members, All steel is
wire brushed and protected with one coat red oxide primer and one coat
glossy enamel paint.

Spacing of transverse members=2500mmc/c
Spacing of longitudinal members=3000mmc/c

Lifting eyes are provided at intermediate points along with the perimeter
beams.

————————————————————————


FLOOR

Floor Frame: The Floor frame shall be constructed from MS angle 50x50x4mm welded into the base frame, making the floor assembly one integral frame.(600mm joists spacing). The floor frame shall be grit blasted to SA2.5 and painted with 02 coat system of epoxy paint.



Floor decking: One layer of 18 mm thick cement board, fixed to the base frame and floor frame.

Bottom of the cement board is painted with bitumen paint.



Floor finish in dry areas: High quality PVC sheet 1.5 mm fixed to 18mm
thick cement board floor. MDF skirting 50x12mm will be provided all
around.
Floor finish in wet areas: 6mm thick GRP lamination, 02 layers of fibre
matting color light grey with skirting up to 150mm at floor wall junctions.————————————————————————




WALLS & COLUMNS

External Finish:
External Finish: 06 mm thick cement board finished with weather proof
heavy texture paint over one coat of wall primer.
Internal Finish in dry area: 12mm thick gypsum board finished with super
white plastic emulsion over one coat or wall primer.
Internal Finish in wet area: 12mm thick MR gypsum board finished with
matt / high gloss enamel paint.
Internal finish in Gm’s toilet is ceramic tiles 30x60cm as per color and
design approve by the client.
Wall Framing:
To be manufactured with light gauge steel profile framing GI 70 X 35 X.5
mm placed at 600mm spacing vertically with 1200mm horizontal
placement with cross tie setting as per durability.Internal Finish in wet areas: 6mm thick cement board oil painted as per
color and design approved by client.
Wall Insulation: 50mm thick Rock-wool insulation 30kg/m3 density.

————————————————————————

ROOF Roof: Trusses are made with MS angle 40 x40 x3mm /25x25x3mm welded
together to form a truss with two way slope having the purlins of MS angle
40 x 40 x3mm .————————————————————————
Roof covering is corrugated powder coated Gi Profile sheet .5mm thick.

————————————————————————

CEILING False Ceiling:
False ceiling is 12mm thick gypsum board tile ceiling with fine texture
paint. Height from FF level to false ceiling is 2300mm, Total wall height is
2440mm each floor.————————————————————————
DOORS External doors are double / single powder coated aluminium half clear
glass, half aluminium frame/full frame doors with size 1600 x 2100mm and
900 x 2100mm with complete ironmongery.

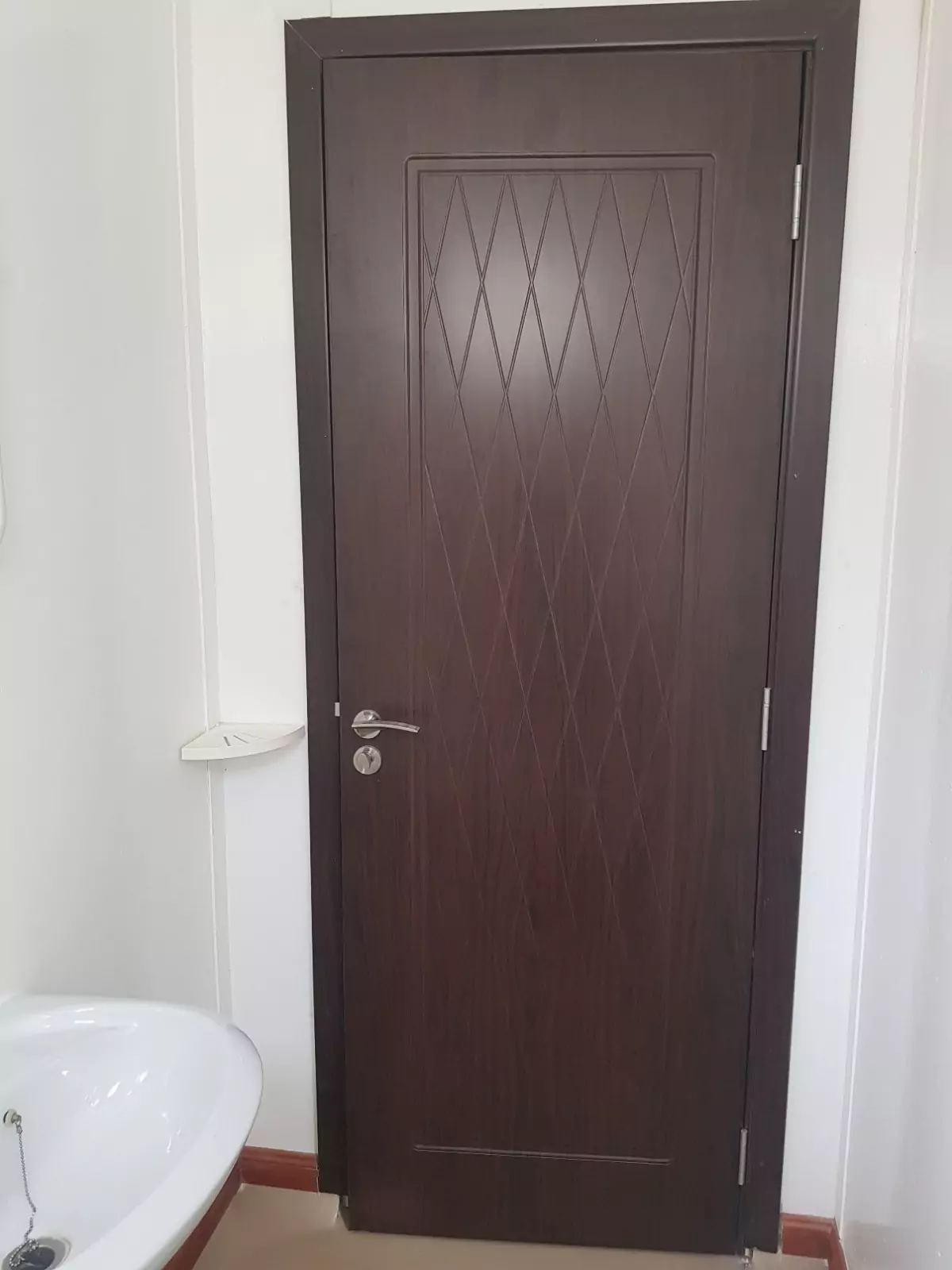

Internal doors are semi solid wood /Wpvc doors with laminate finish.
External Toilet & Pantry doors are are semi solid wood /Wpvc doors with
laminate finish.
Door closer is to be provided only with the external main entrance doors.
Door stopper: Half round floor door stopper shall be provided for all the
doors.————————————————————————
WINDOWS Powder coated Aluminium frame white colour fixed type glasses 6mm
thick clear glass .400 x 400mm powder coated aluminium windows openable are placed for
the exhaust fans and ventilation.————————————————————————
ELECTRICAL Electrical supply: Three phase 415 volts as per requirement with D/B Panel.
Make – MEM / Hager/ ABB or equivalent. ELCB incoming with MCB out
going.
All wires are through PVC conduits concealed within walls.
Lighting 2x36Watt LED lights in dry & wet areas.
Wires origin is – National / Mesc/ equivalent.
Tel & Data pvc conduits only with covering plates.————————————————————————
PLUMBING Piping: Water pipes shall be PPR for cold and hot water. Drainage pipes will
be UPVC pipes.
Sanitary-wares: Wash hand Basins will be pedestal type. EWC with cistern
& seat cove by Home décor / Aster / Gulf or equiv. All sanitary wares are
standard white color and will be of Home decor or Equiv brand.
Looking mirror, Soap dispenser, Toilet paper holder is provided.


PANTRY

————————————————————————

Laminated MDF counter with granite top having built in SS sink with mixer.



A/C UNITS

————————————————————————

Supply & installation of isolators only IP65.
