Original price was: د.إ 110,000.00.د.إ 109,799.00Current price is: د.إ 109,799.00. inc. Vat

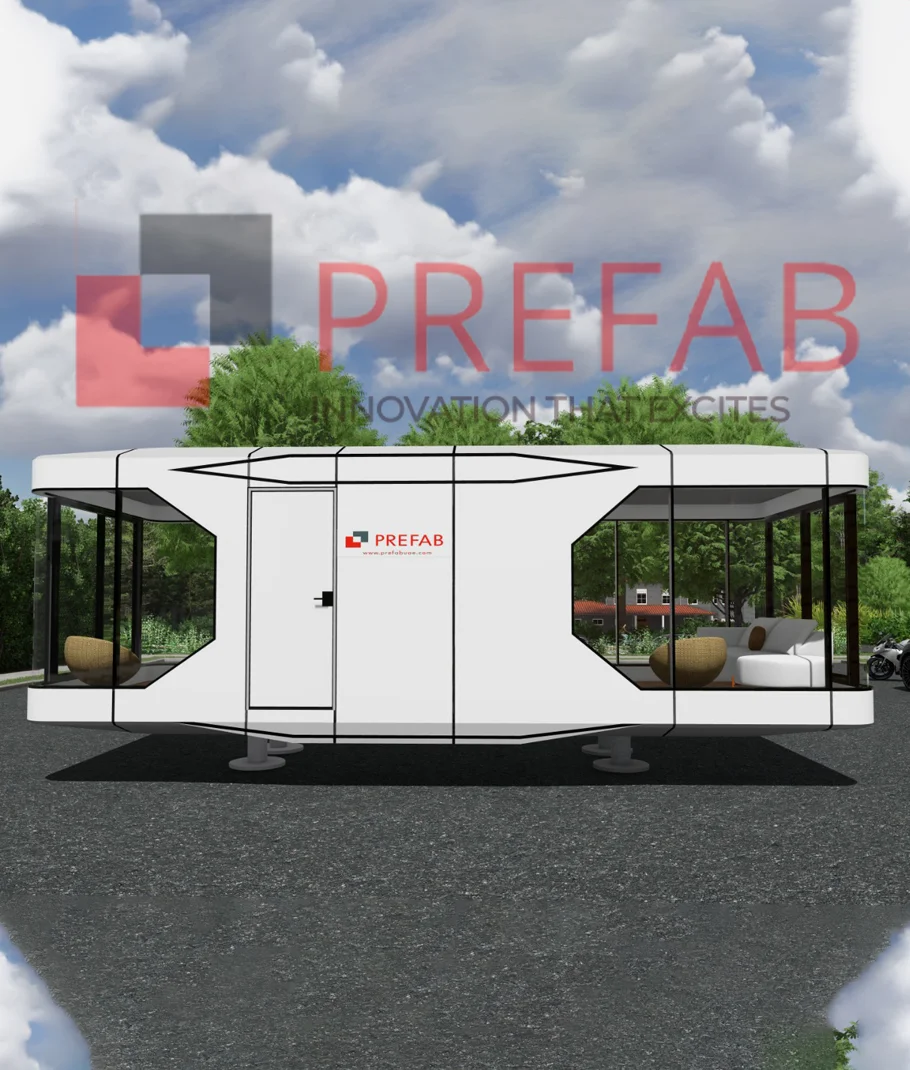

High-end Alum Cladded Smart Cabin
Built In Home automation system
Size : 8.5*3.5*3.5 m
|
BASE FRAME |
The steel base frame shall be constructed from RHS 120X60X4MM, full perimeter beams with central runner and cross members. Spacing of transverse members=2500 mm c/c Spacing of longitudinal members=3000 mm c/c ———————————————————————— |
| Lifting eyes are provided at intermediate points at the top of the cabin welded with the MS sheet 3.0mm painted in 01 coat of red oxide primer and 01 coat with matt enamel paint.
———————————————————————— |
|
| The Base frame shall painted with 02 coat paint, one with red oxide, one with rust free enamel paint.
———————————————————————— |
|
|
FLOOR |
Floor Frame: The Floor frame shall be constructed from MS angle 50x50x4mm welded into the base frame, making the floor assembly one integral frame.(600mm joists spacing). The floor frame shall be grit blasted to SA2.5 and painted with 02 coat system of epoxy paint.
|
| Floor decking: One layer of 18 mm thick cement board, fixed to the base frame and floor frame.
Bottom of the cement board is painted with bitumen paint.
|
|
| Floor finish in dry areas: Supply & installation of ceramic tiles 320×320 / 600x600mm as per colour and design approved by the client, colour options attached.
|
|
| Floor finish in wet areas: Excluded.
———————————————————————— |
|
|
WALLS & COLUMNS |
External Finish: 4mm aluminium sheet cladding through flat stick panel pasted & fixed outer side colour as per approval of the customer.
Colour chart attached. |
| Wall Framing: 100X50X3mm / 50x50x3mm RHS wall columns with spacing of 2000mm respectively along with LGS profile framing GI studs 70 x 35 x .5mm fixed together by screws at spacing of 610 mm vertically & 1200mm horizontally with inserted rock wool 50mm thick having density
of 30kg/m3.
|
|
| Internal Finish: 3mm thick ACP cladding through flat stick panel system, colour and design approved by he client. | |
| Wall Insulation: 50mm thick Rock-wool insulation 30kg/m3 density.
———————————————————————— |
| ROOF | Roof: Trusses are constructed by MS Angle 40x40x3mm with back slope
having the purlins of 25x25x3mm Ms angle. ———————————————————————— |
| Roof covering is 3mm thick MS steel sheet welded to the top frame upper side as per approval from the client.
———————————————————————— |
|
| CEILING | False ceiling is 600×600 aluminium perforated ceiling with complete suspension.
Wall height will be 2700mm. Clear height (floor to false ceiling) is 2400 mm. ———————————————————————— |
| DOORS | External doors are aluminium powder coated half glass half panel / one hour fire rated steel sandwich doors size 900x2100mm with door closer. |
| Door closer is to be provided only with the external main entrance doors.
———————————————————————— |
|
| WINDOWS | LHS & RHS aluminium famed sliding window 06mm double glazed, tempered, tinted grey glass size 2000x1000mm / 2000x1000mm with sliding windows size 500×500 mm
SS stripes 50 x 1mm is fixed as per design. ———————————————————————— |
| ELECTRICAL | Electrical supply: 220 volts single phase/ 380-415 volts three phase as per requirement with D/B Panel. Make – MEM / Hager/ ABB or equivalent.
All wires are through PVC conduits concealed within walls. |
| 1×20 w LED down lights batten type fitting – Dry Areas (Make –
Selex/Frater/Eqv) 13 amps and 15 amps switch socket outlets are – Legrand Brand / Tenby / equivalent. Wires origin is – Ducab / Tekab / equivalent. Installation of 16A- 03 Pin Quick connect socket out side of the cabin. Data & Tel points are provided in shape of pvc conduits only without cables DB main incomer wire provision is concealed. ———————————————————————— |
|
| PLUMBING | Excluded |
|
FURNITURE |
————————————————————————
Fixed vineer counter curved in wall nut colour is provided with the cabin with 03 drawers on one side & 01 chair. |
|
A/C UNITS |
————————————————————————
Supply & installation of split pe Ac units with IP 65 isolators are provided with MS steel frames nut & bolted to fix Ac outer unit at site. |
