| BASE FRAME | The steel base frame shall be constructed from IPE 140/120/100 AA MS I Beam, full perimeter beams with central runner and cross members, All steel is wire brushed and protected with one coat red oxide primer and one coat glossy enamel paint.
Spacing of transverse members=2500 mm c/c Spacing of longitudinal members=3000 mm c/c
|
|
| The Base frame shall painted with 02 coat paint, one with red oxide, one with rust free enamel paint.
Columns & Supporting Beams: Base standing columns are placed at 3000mm c/c with IPE 120/100 MS hollow section to support the First floor concealed in the wall’s structure. First floor base frame is made with IPE 120 MS I Beam. Base columns for steel stair case are welded on the 12mm thick MS plate with 12mm anchor bolts. ———————————————————————— |
||
|
FLOOR |
Floor Frame: The Floor frame shall be constructed from MS angle 50 x50 x4mm MS welded into the base frame, making the floor assembly one integral frame.(600mm /400mm joists spacing). The floor frame shall be grit blasted to SA2.5 and painted with 02 coat system of epoxy paint.
|
|
| Floor decking: One layer of 18 mm thick cement board, fixed to the base frame and floor frame.
Bottom of the cement board is painted with bitumen paint.
|
||
| Floor finish in dry areas: High quality PVC sheet 1.5 mm fixed to 18mm thick cement board floor. MDF skirting 50x12mm will be provided all around.
Mosque Cabin: Prayer carpet as per the client’s approval of the color and design maximum rate Aed50/Sqm.(Picture attached) |
||
| Floor finish in wet areas(Toilet Cabin only): 03mm thick GRP lamination with 02 layers of fibre matting with fibre mesh skirting upto 100mm at floor wall junctions for 0% water insertion.
———————————————————————— |
||
|
WALLS & COLUMNS |

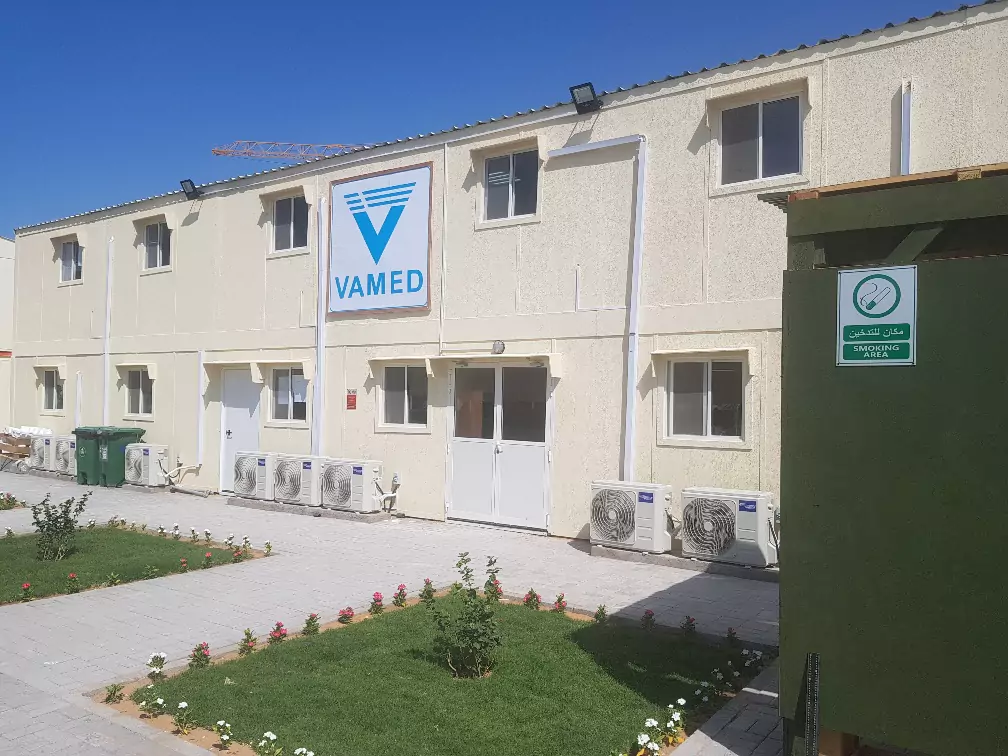

External Finish: 06 mm thick cement board finished with weather proof heavy texture paint by Berger over one coat of wall primer.
Internal Finish: 12.5mm thick gypsum board finished with super white emulsion by Berger over one coat or wall primer. |
|
| Wall Framing:
To be manufactured with light gauge steel profile framing GI 70 X 35 X.5 mm placed at 600mm spacing vertically with 1200mm horizontal placement with cross tie setting as per durability.
|
||
|
||
| Wall Insulation: 50mm thick Glass-wool insulation 12kg/m3 density.
———————————————————————— |
| ROOF | Wall Insulation: 50mm thick Glass-wool insulation 12kg/m3 density.
———————————————————————— |
| Roof covering is corrugated powder coated GI Profile sheet .5mm thick.
———————————————————————— |
|
| CEILING | False Ceiling:

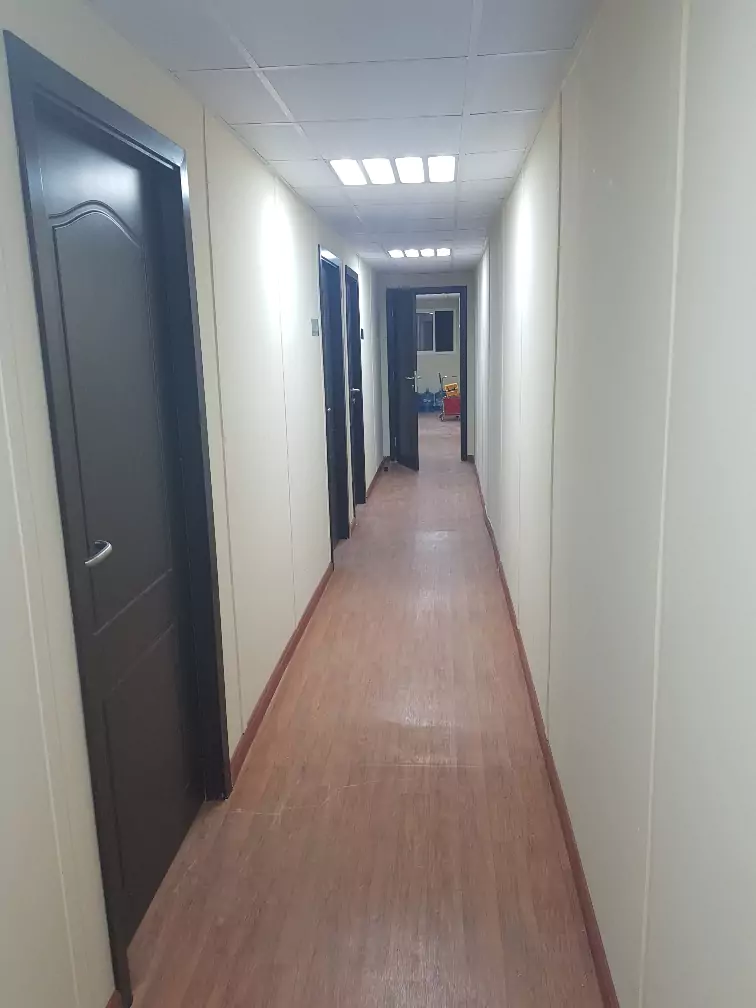

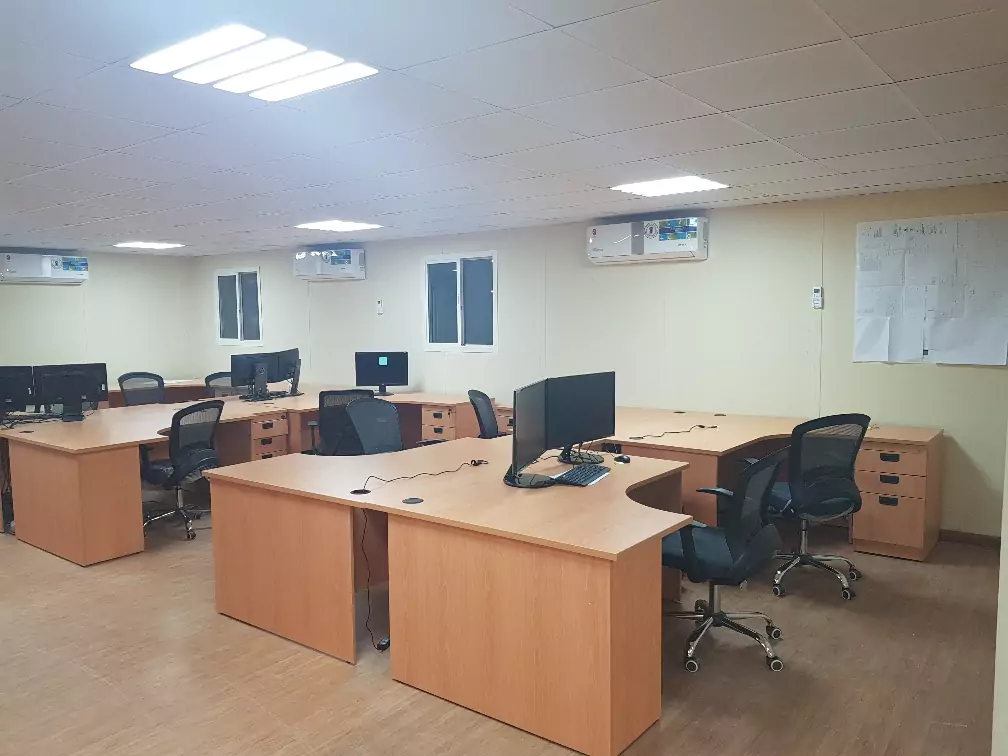

Ground plus one Site Office False ceiling is 600 x 600mm gypsum tile ceiling with aluminium suspension color and design as per client. Height from FF level to false ceiling is 2300mm, Total wall height is 2440mm. Other Cabins False ceiling is 12.5mm thick gypsum baprd painted white emulsion. Fixed on GI furring channels fixed at 610 mm C/c. Wall Height will be 2440mm. Clear height (floor to false ceiling) is 2340 mm. ———————————————————————— |

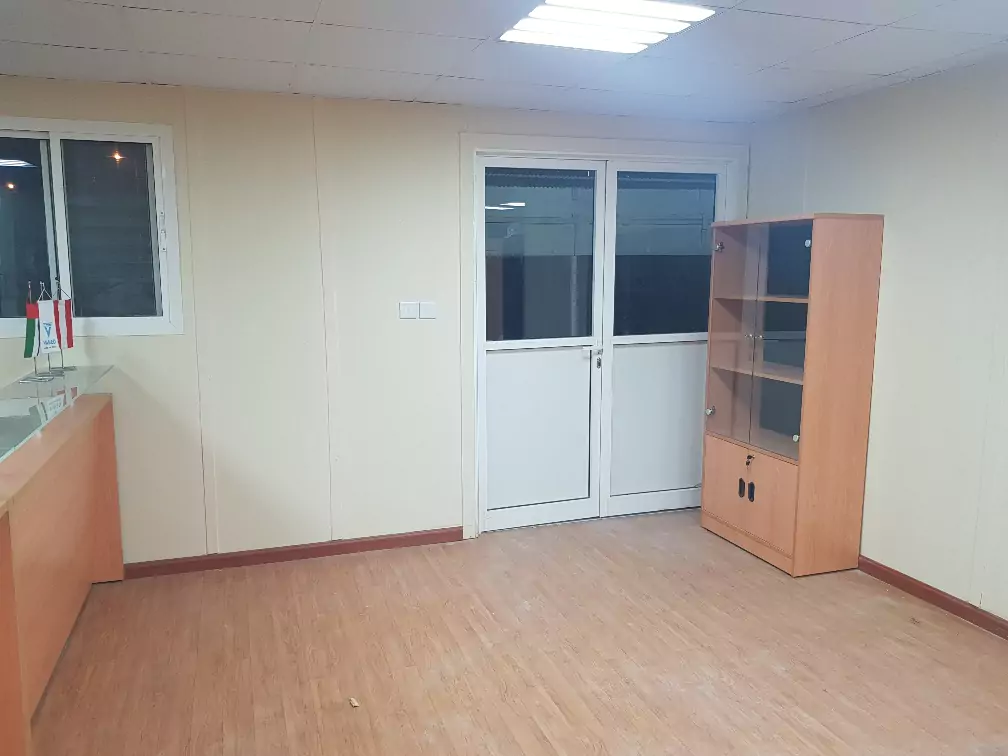

| DOORS | External doors are double / single powder coated aluminium half clear glass, half aluminium frame/full frame doors size 1600 x 2100mm and 900 x 2100mm with complete ironmongery. Internal doors are semi solid wood /Wpvc doors with laminate finish. size 900 x 2100mm.Toilet & Pantry doors are powder coated aluminium full frame doors insulated with rock wool panel having complete ironmongery size 720x2100mm. Pictures attached. |
| Door closer is to be provided only with the external main entrance doors.
Door stopper: Half round floor door stopper shall be provided for all the doors. ———————————————————————— |
|
| WINDOWS | Powder coated Aluminium frame white color windows sliding type 6 mm thick clear glass with insect screen size 900 x 900mm.
500 x 500mm powder coated aluminium windows openable are placed for the exhaust fans and ventilation. ———————————————————————— |
| ELECTRICAL | Electrical supply: Three phase 415 volts as per requirement with D/B Panel. Make – MEM / Hager/ ABB or equivalent. ELCB incoming with MCB out going.
All wires are through PVC conduits concealed within walls. |
| Ground plus one Site Office
Lighting 600x600mm 1x90w LED lights make by MAX in dry & wet areas. Other Cabins 2x36watt Fluorescent batten type fittings make by Falcon, rod by Phillips. 13 amps and 15 amps switch socket outlets are – Legrand Brand / Tenby / equivalent. Wires origin is – National / Mesc/ equivalent. Tel & Data pvc conduits only with covering plates. ———————————————————————— |
|
| PLUMBING | Piping: Water pipes shall be PPR for cold and hot water. Drainage pipes will be UPVC pipes. |

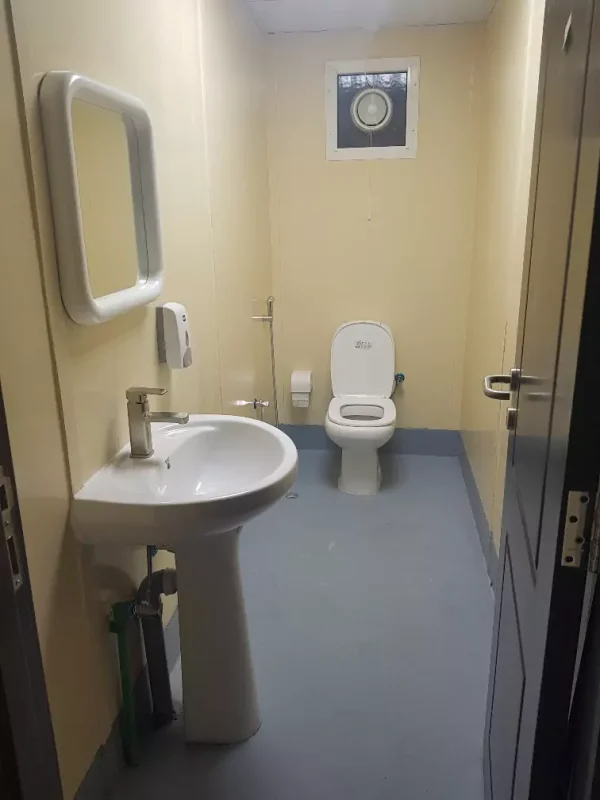

| Sanitary-wares: Wash hand Basins will be pedestal type. EWC with cistern & seat cove by Home décor / Aster / Gulf or equiv. All sanitary wares are standard white color and will be of Home decor or Equiv brand. |
|
| Looking mirror, Glass / plastic mirror shelf, SS soap tray, SS towel rod, SS coat hook is provided. | |
|
PANTRY |
————————————————————————
Kitchen Cabinets are made from laminated MDF over the cabinet finished with black galaxy marble granite, mixer and stainless steel sink (Single bowl). Wall Cabinets are excluded. |
|
A/C UNITS |
————————————————————————
Supply & installation of Split Ac units as per above description. |
STEEL STAIR CASE External MS steel stair case is manufactured with Ms hollow section 120 x
64mm for standing columns, MS angle frame 50 x50 x3mm with hand rail
from MS 40 X40 X3MM HS and chequered plate on plate forms welded
3.0mm having 02 coat paint, 01 with red oxide primer, 01 with rust free
enamel paint. Internal stair case is finished with carpet.
